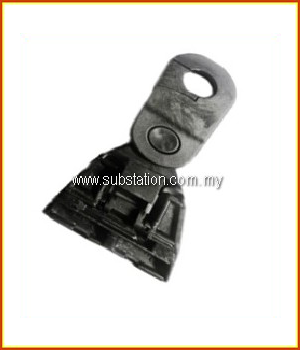

LV Suspension Clamp

Click to Enlarge

Code
DSSB-ABC-SC25-120

SUSPENSION CLAMP (SC) is designed for supporting Insulation  Aerial Bundle Cable (ABC) having messenger cable size ranging from 25 to 120  mm2 in straight lines at angles.

The body of the suspension clamp is supplied with tightening  piece consisting of screw and clamp, enabling the messenger cable to be fitted  (locked)  into the suspension groove.

The body, the movable link, tightening screw and clamp are  made of  high resistance reinforced  thermoplastic body, U – V radiant material which has very high mechanical and  climatic properties.

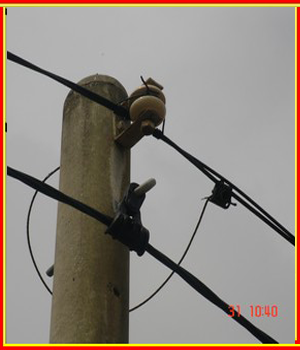

The suspension clamp is flexible in the vertical direction  because of the movable link and also served as a weak link the suspension of  aerial cable.

If you wish to know more, please feel free to contact us.

LV SUSPENSION CLAMP CATALOGUE

See LV Universal Band
