dynamometer

  • Compact, lightweight, rugged construction.

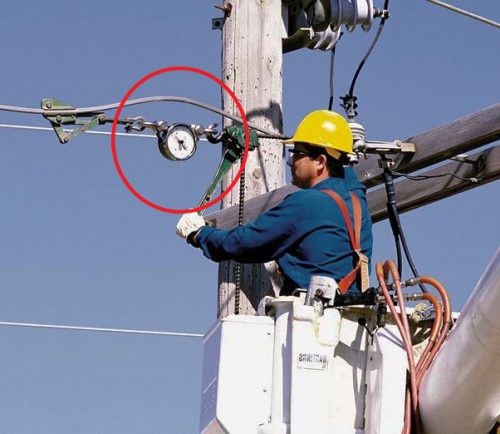

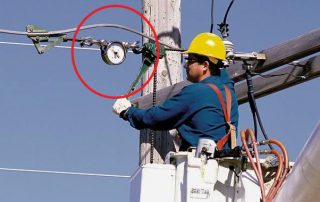

  • Designed for line work.
  • Accepts harsh field conditions(cold&heat)
  • Graduated in kilonewtons (kN).
  • Accuracy +/- 3% Full Scales.
  • Both pulling eyes rotate 360 degrees.
  • Optional maximum reading indicator pointer kit available for easy installation.
  • Optional easily installed screw-on face with twin steel protective bars also available.

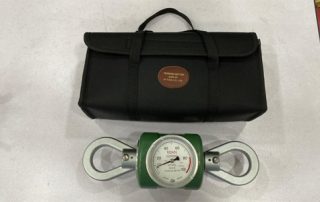

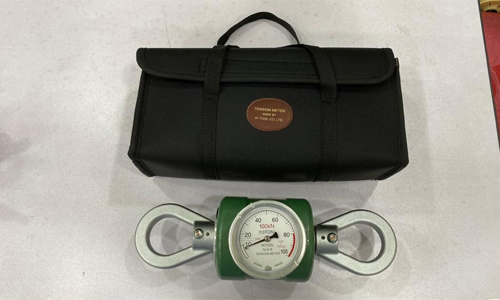

  • Each tool is serial numbered and supplied in a heavy duty fabric case with calibration certificate.

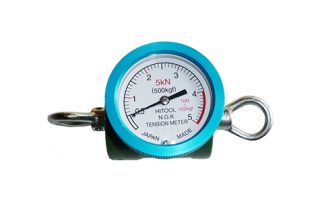

  • Available in sizes 5kN up to 100kN.
In choosing the right dynamometer for your application, always select one that exceeds your highest range. If you expect to measure 20kN, select TM30 at the 30kN capacity. This allows for unexpected shock loading beyond your usual high range which can occur due to gusty winds or other factors.

Model Capacity Graduation A B-Body C D Weight
DSSB-CLA-DYMTM5 - 0.5TON

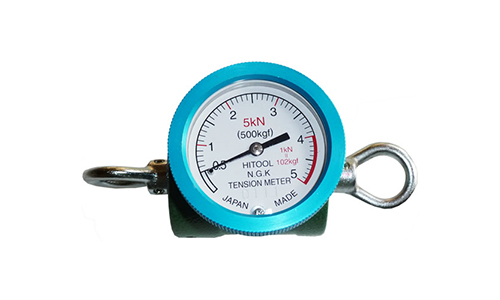

5 kN 0.1 kN 160 mm 75 mm 90 mm 20 mm 0.9 kg
DSSB-CLA-DYMTM10 - 1TON
10 kN 0.2 kN 190 mm 75 mm 90 mm 25 mm 1.0 kg

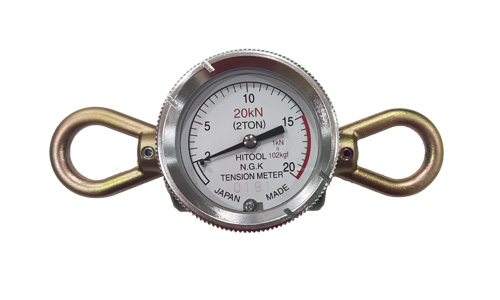

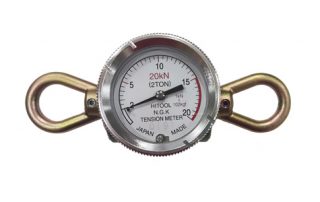

DSSB-CLA-DYMTM20 - 2TON 20 kN 0.5 kN 190 mm 75 mm 90 mm 25 mm 1.1 kg
DSSB-CLA-DYMTM30 - 3TON 30 kN 0.5 kN 240 mm 75 mm 95 mm 35 mm 1.9 kg
DSSB-CLA-DYTMTM50 - 5TON 50 kN 1.0 kN 250 mm 90 mm 120 mm 35 mm 2.6 kg

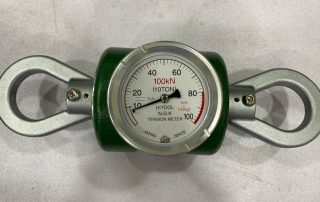

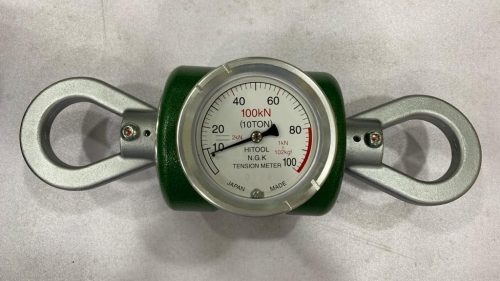

DSSB-CLA-DYMTM100 - 10TON 100 kN 2.0 kN 350 mm 110 mm 140 mm 50 mm 6.0 kg
