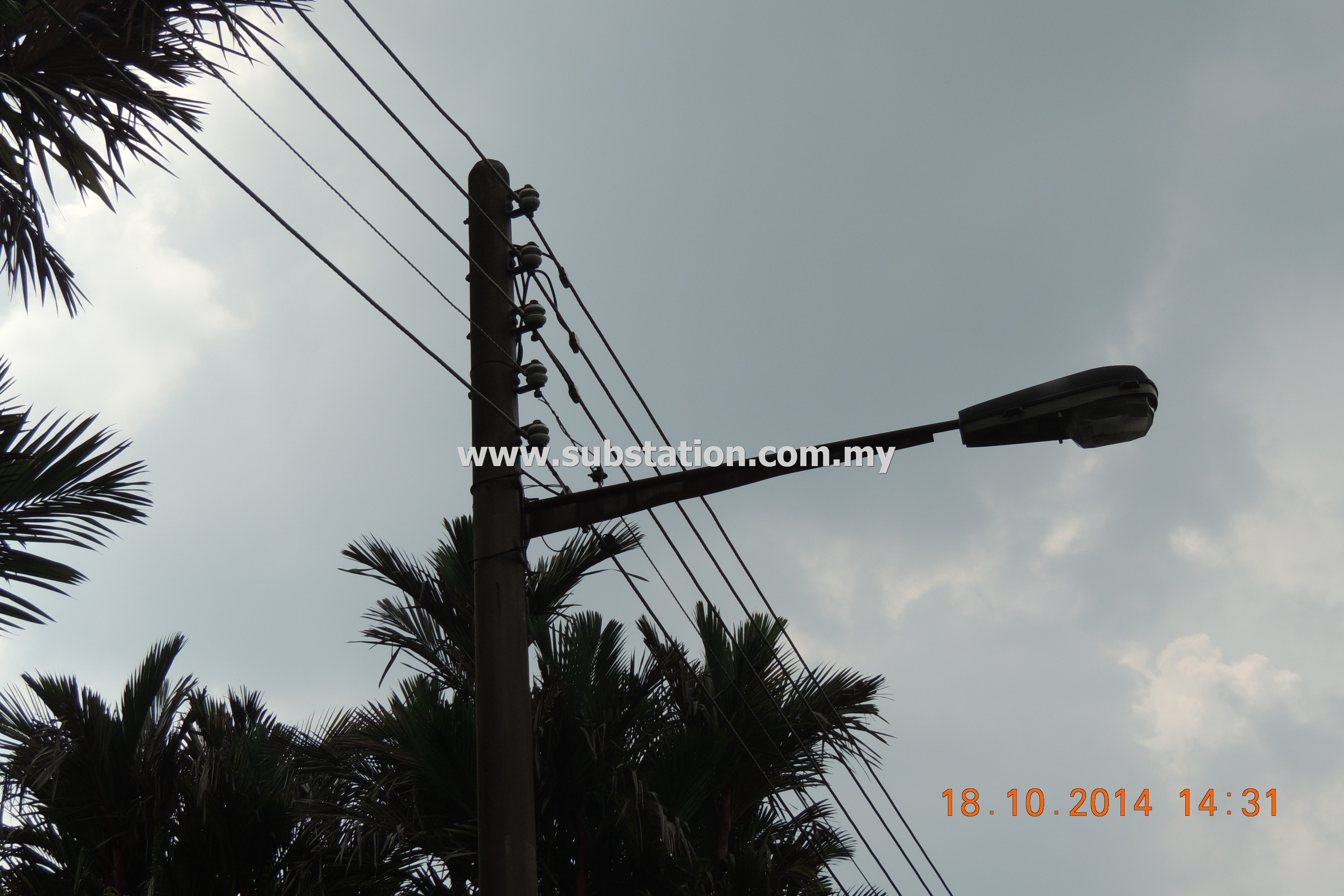

EXISTING 415 V BARE LINE

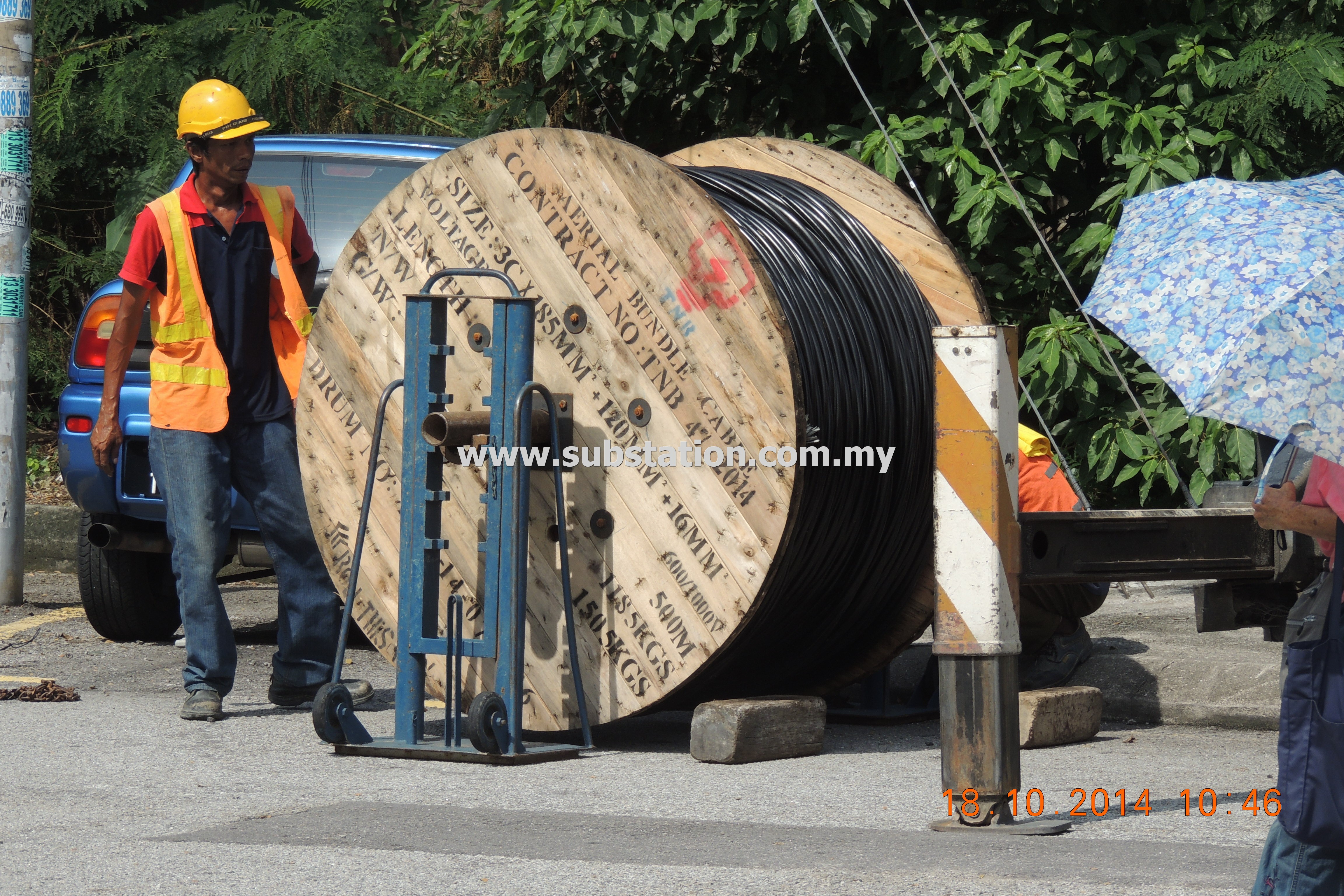

READY of CABLE DRUM

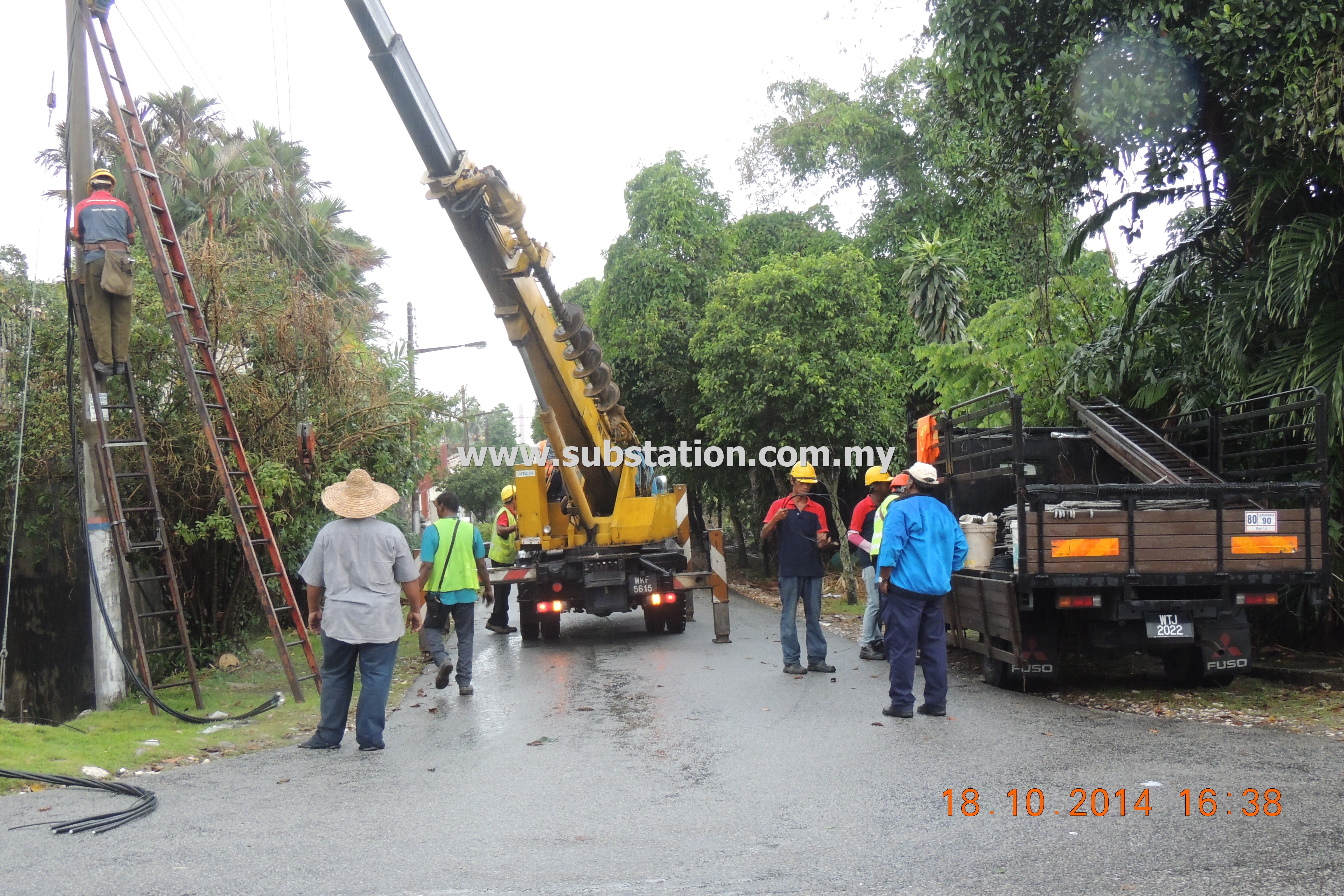

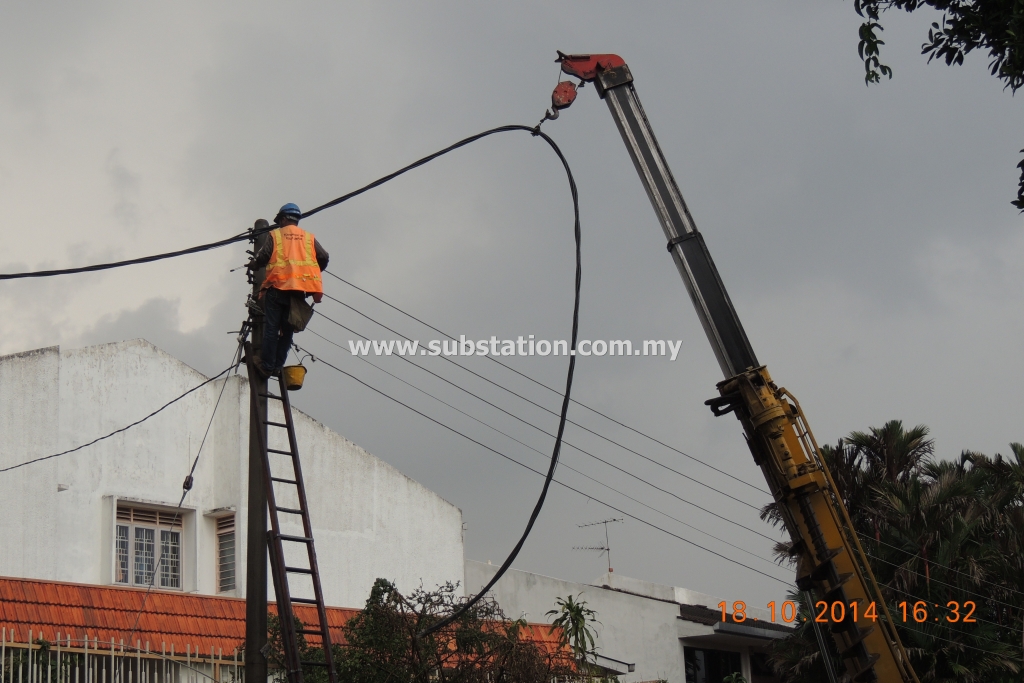

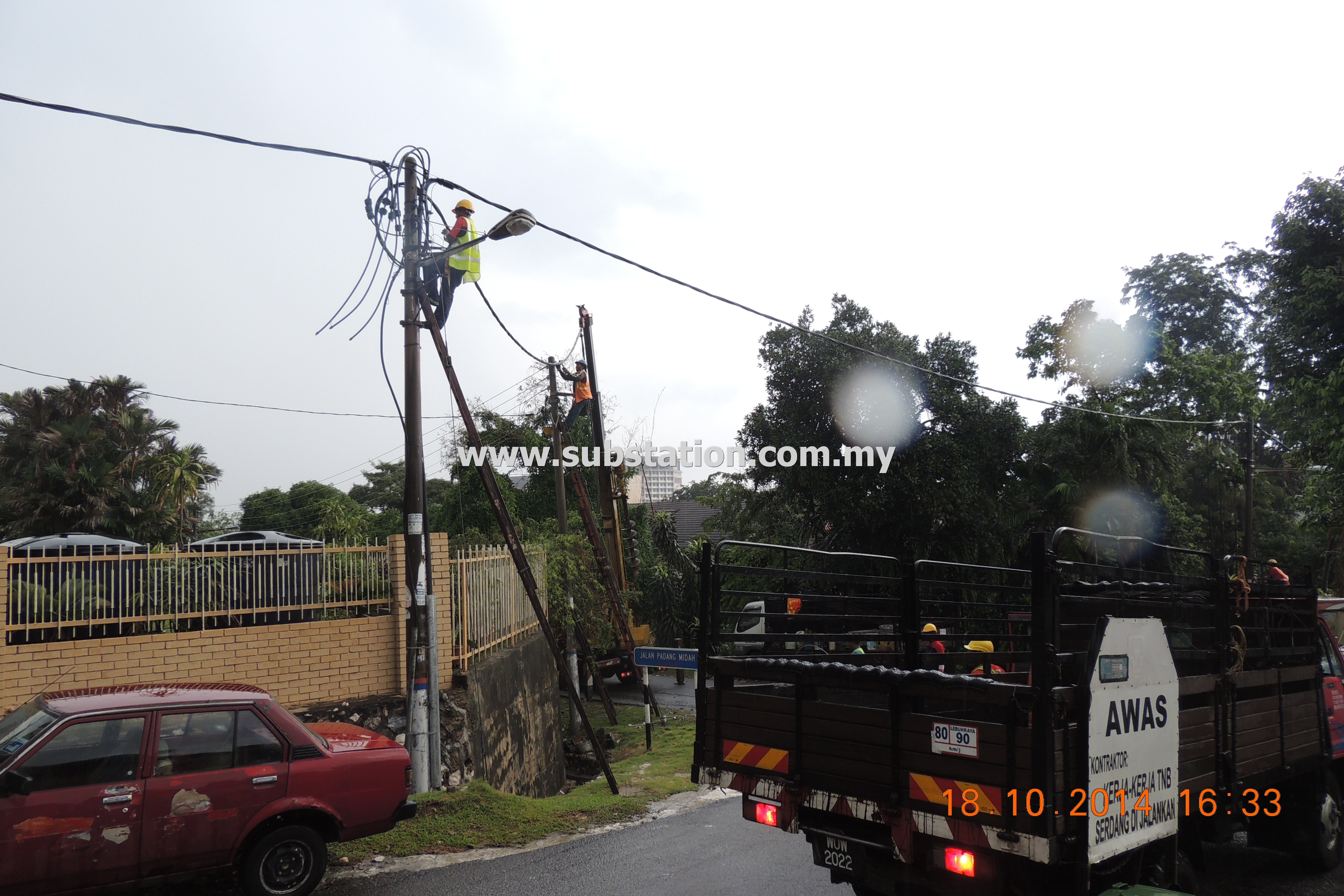

CABLE LAYING with CABLE ROLLER

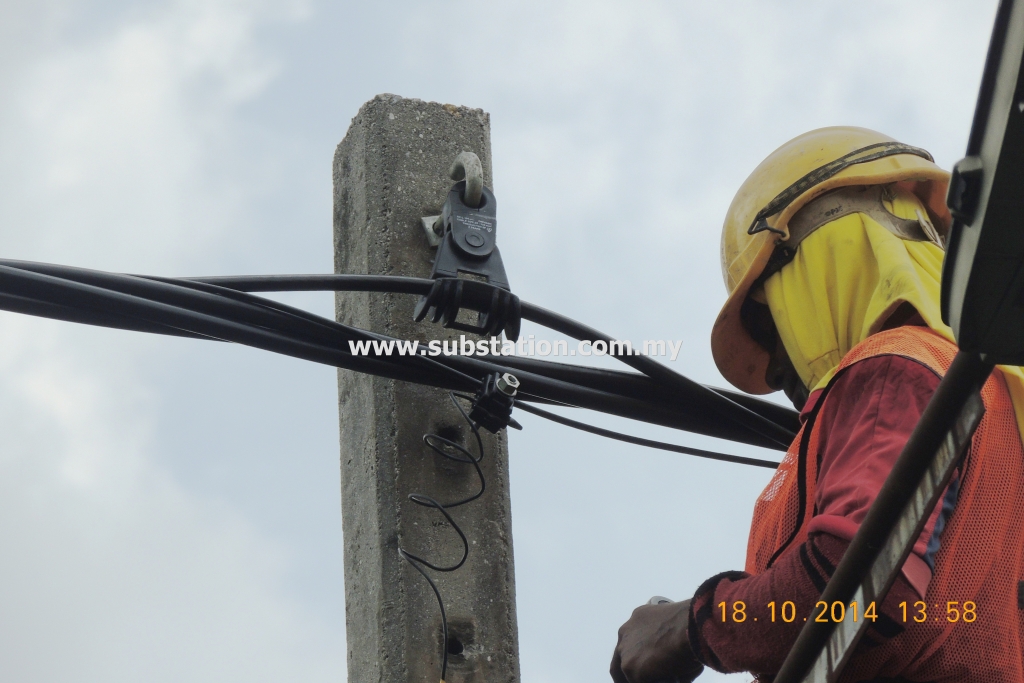

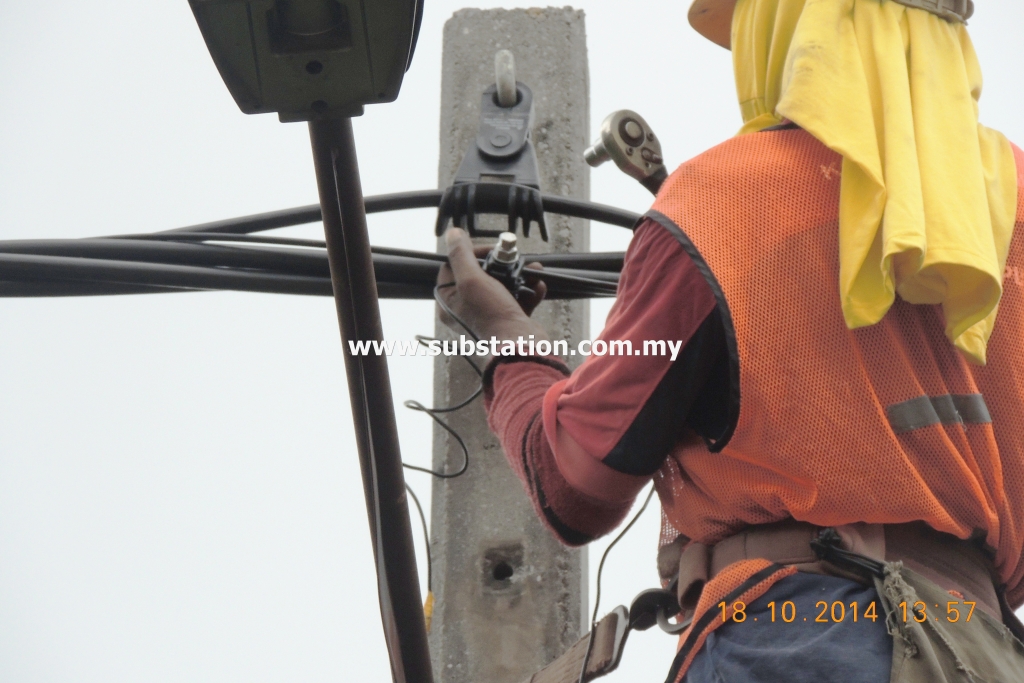

HANGING of ย ABC NEUTRAL CABLE on SUSPENSION CLAMP

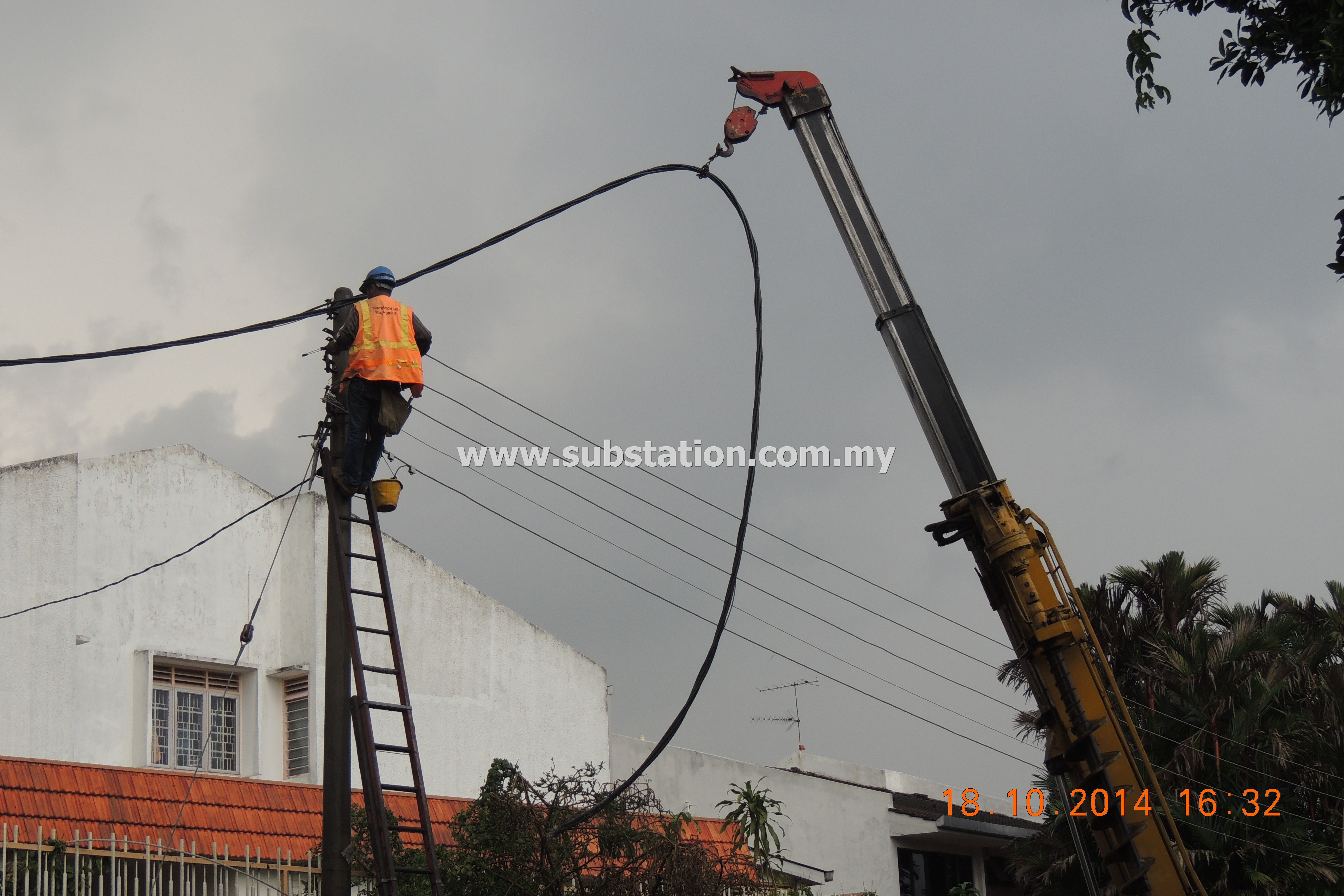

LAYING ย of the ABC CABLES at the END

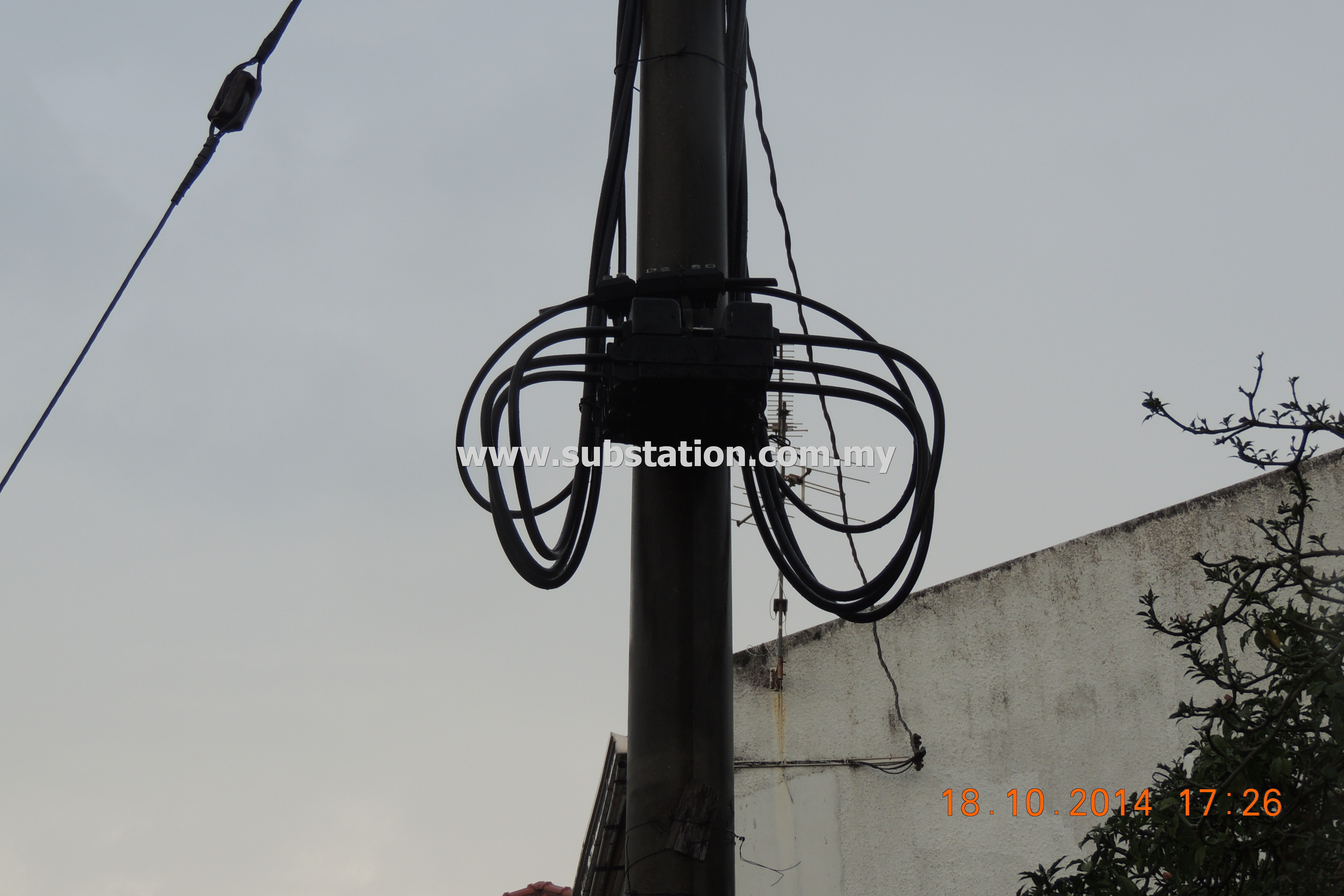

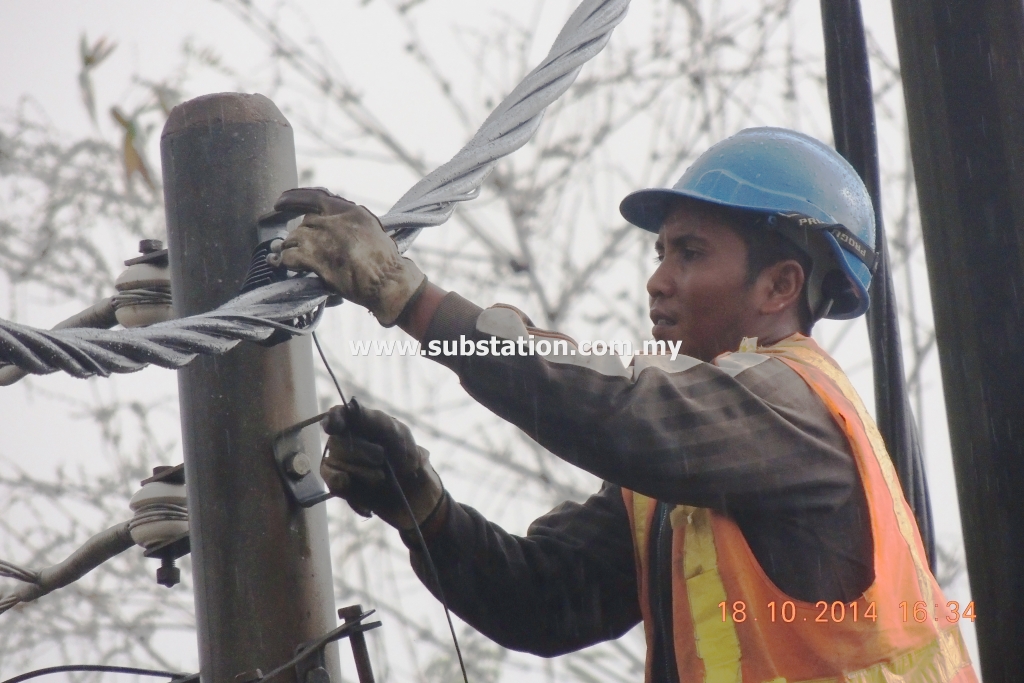

LOOPING of ABC CABLES

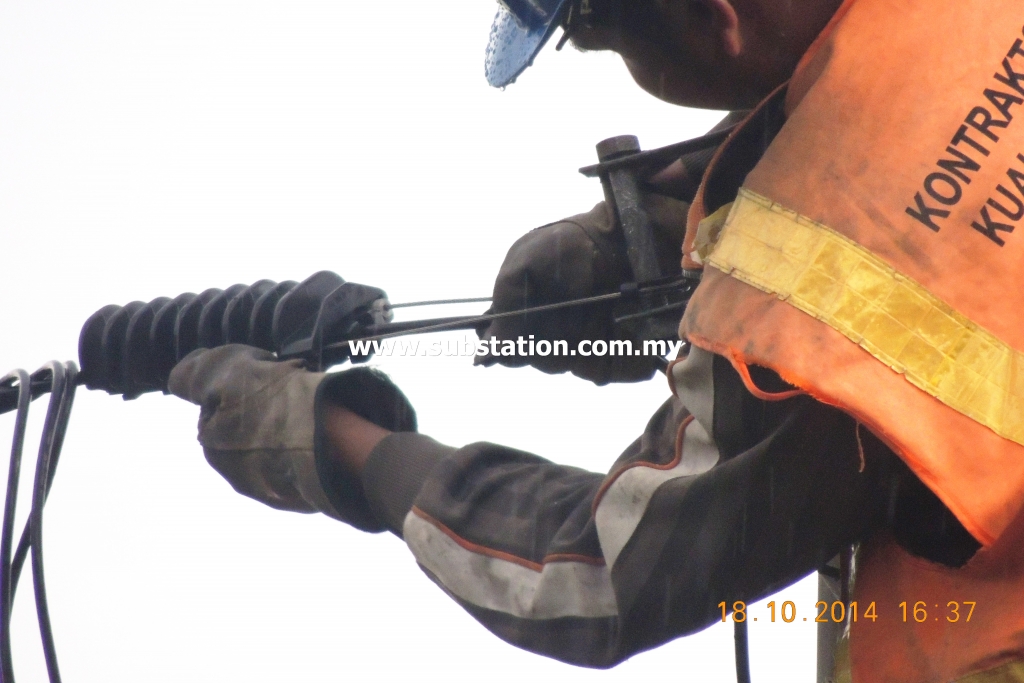

SECURING of DEAD END CLAMP to D BRACKET

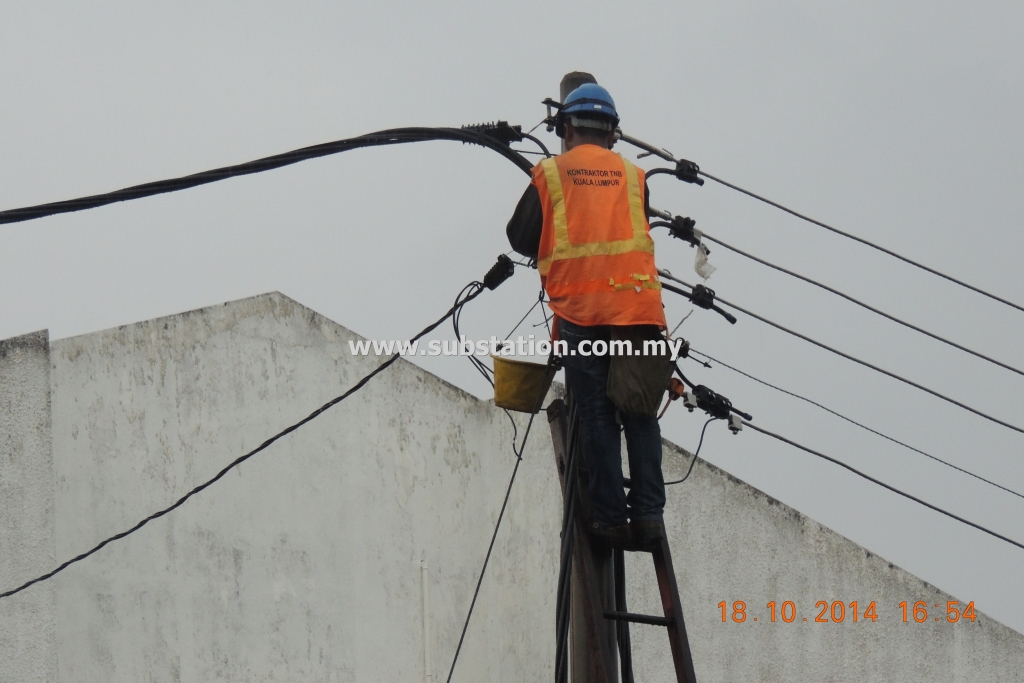

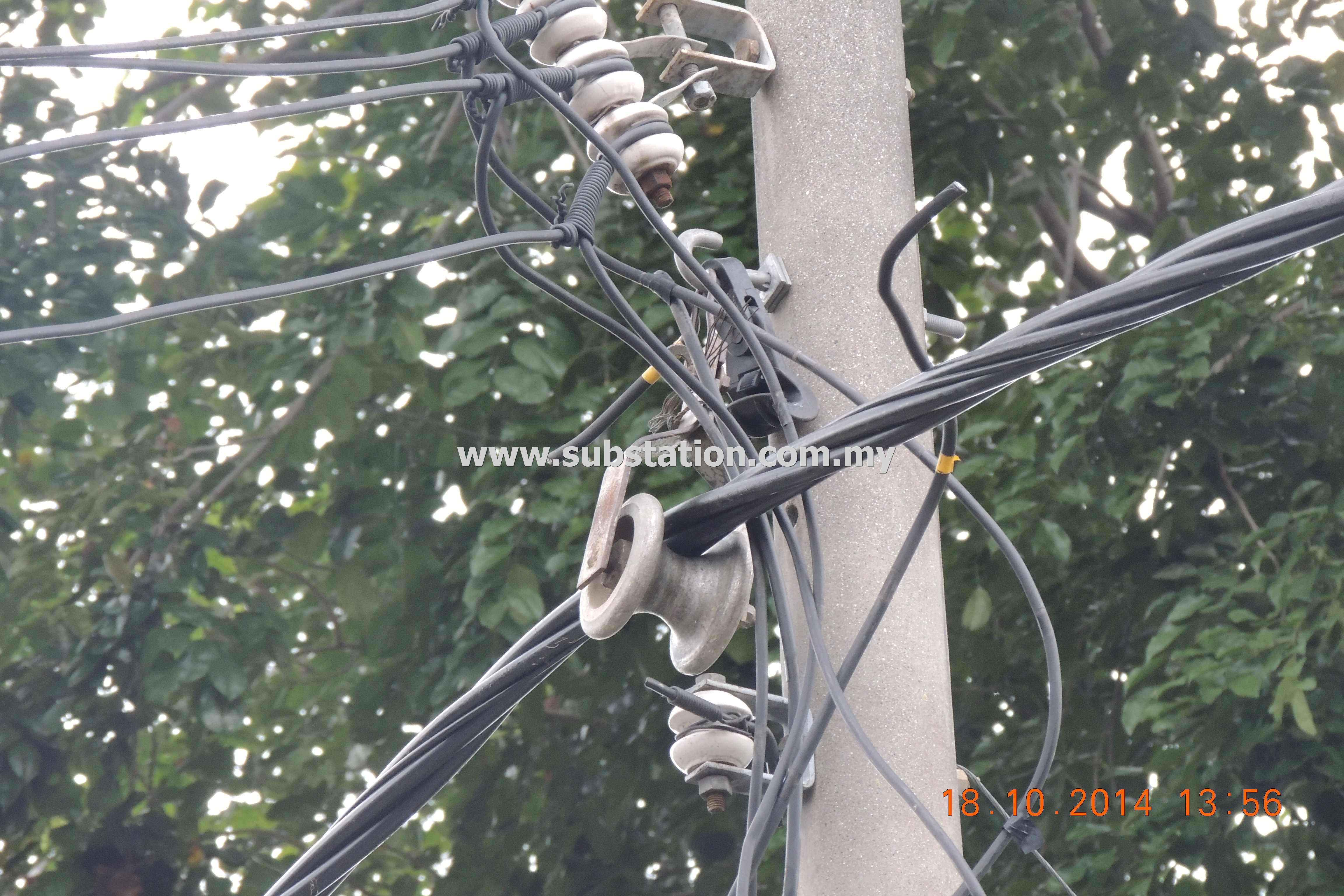

COMPLETED JOINTING of ABC CABLES to BARE WIRES

Completed Jointing of ABC Cables to Bare Wires

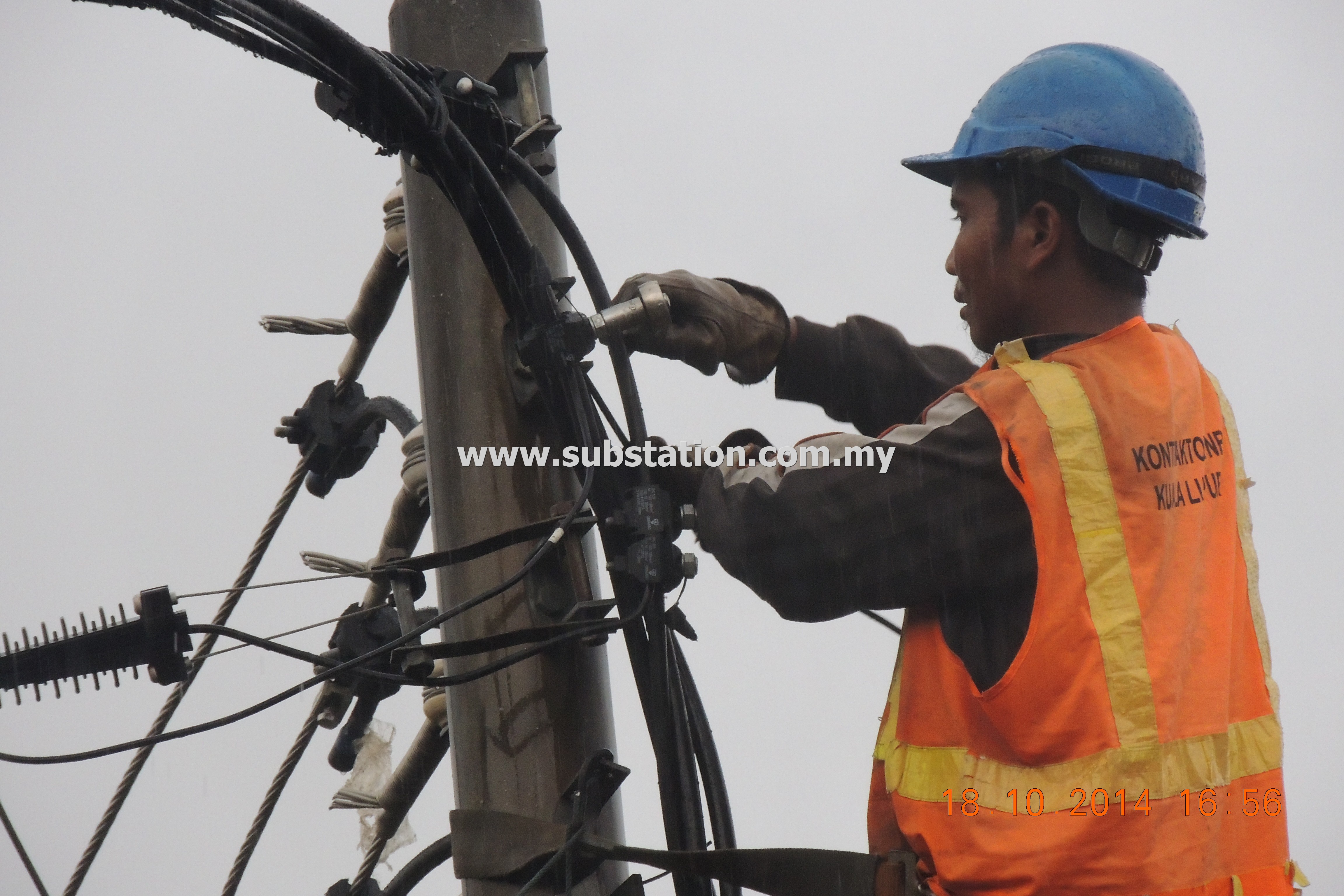

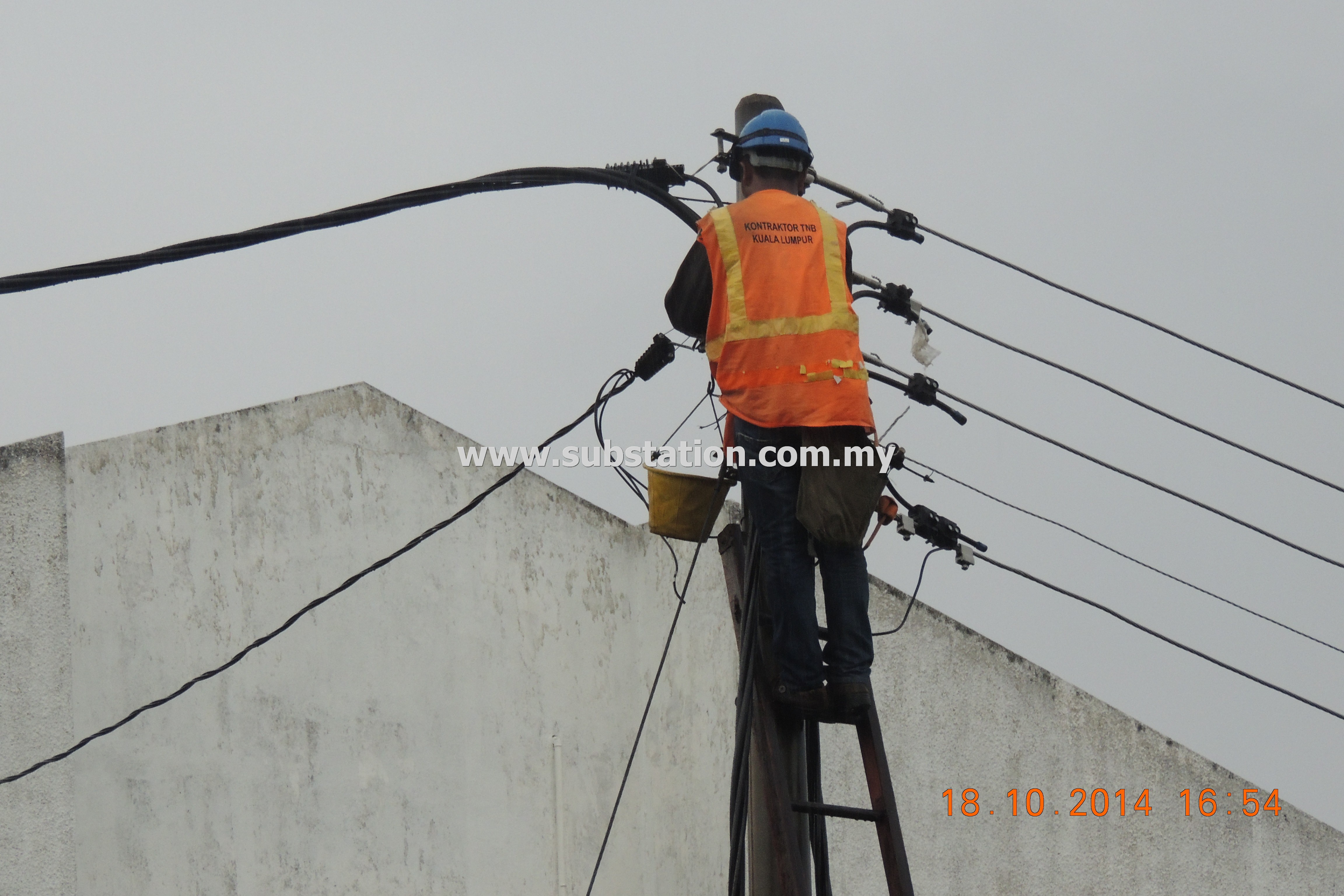

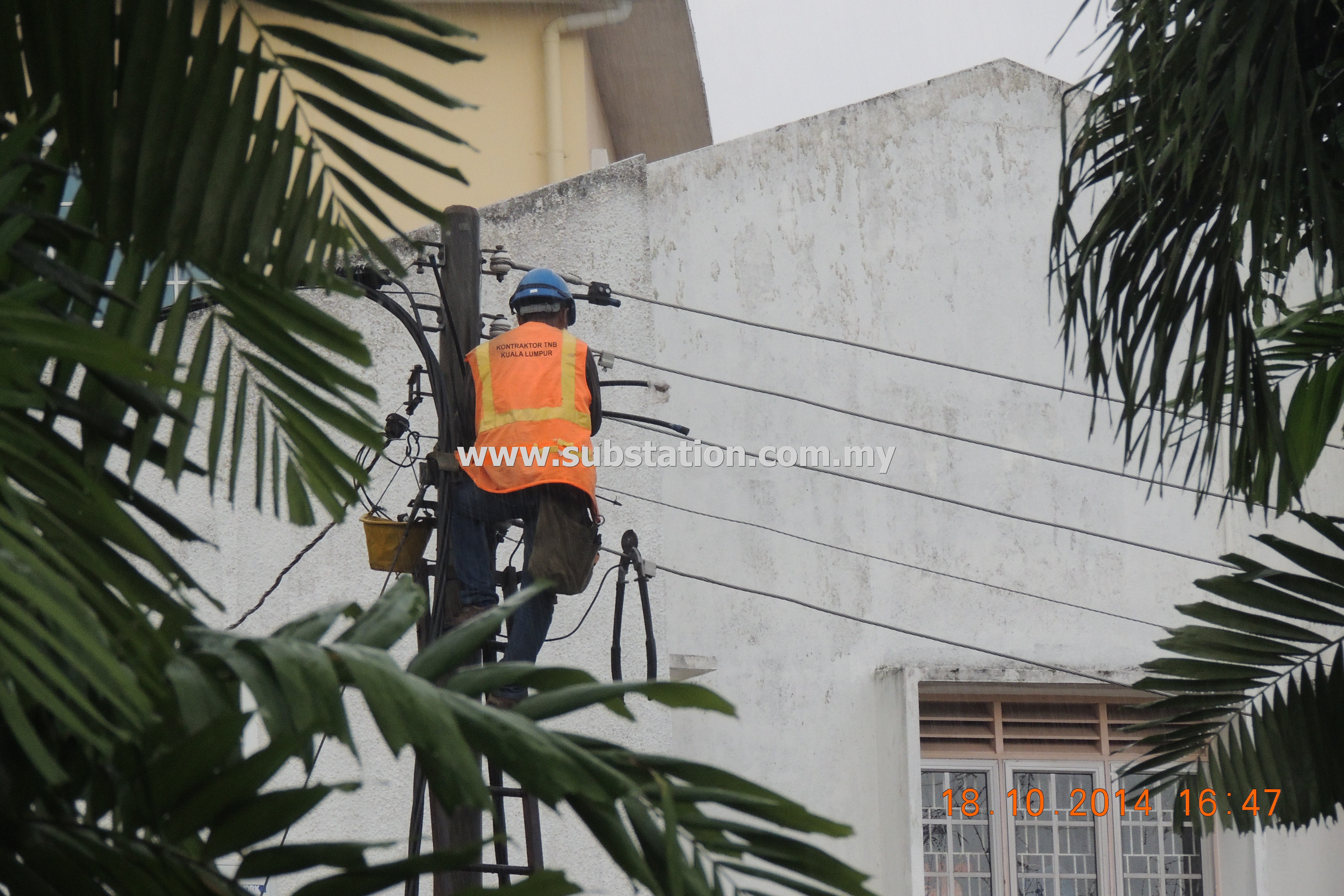

JOINTING of ABC CABLES to BARE CONDUCTORS

Jointing of the ABC Cables to Bare Conductors

INSTALLING IPC for LIGHTING – 16mm.sq

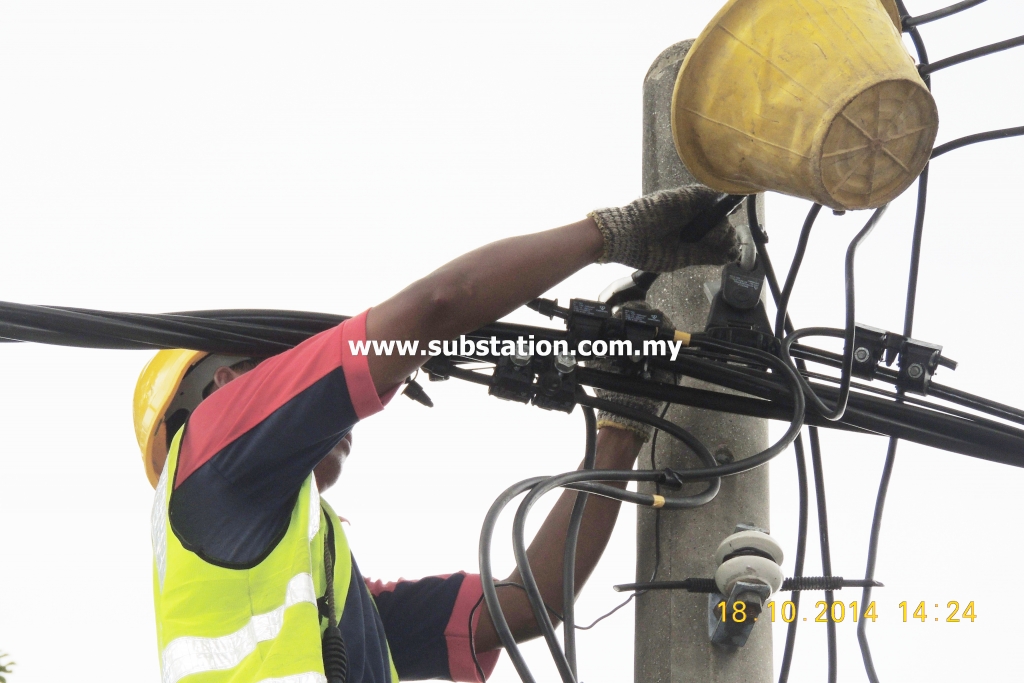

INSTALLING of IPC to MAIN ABC CABLE

Installing of IPC to Main ABC Cable

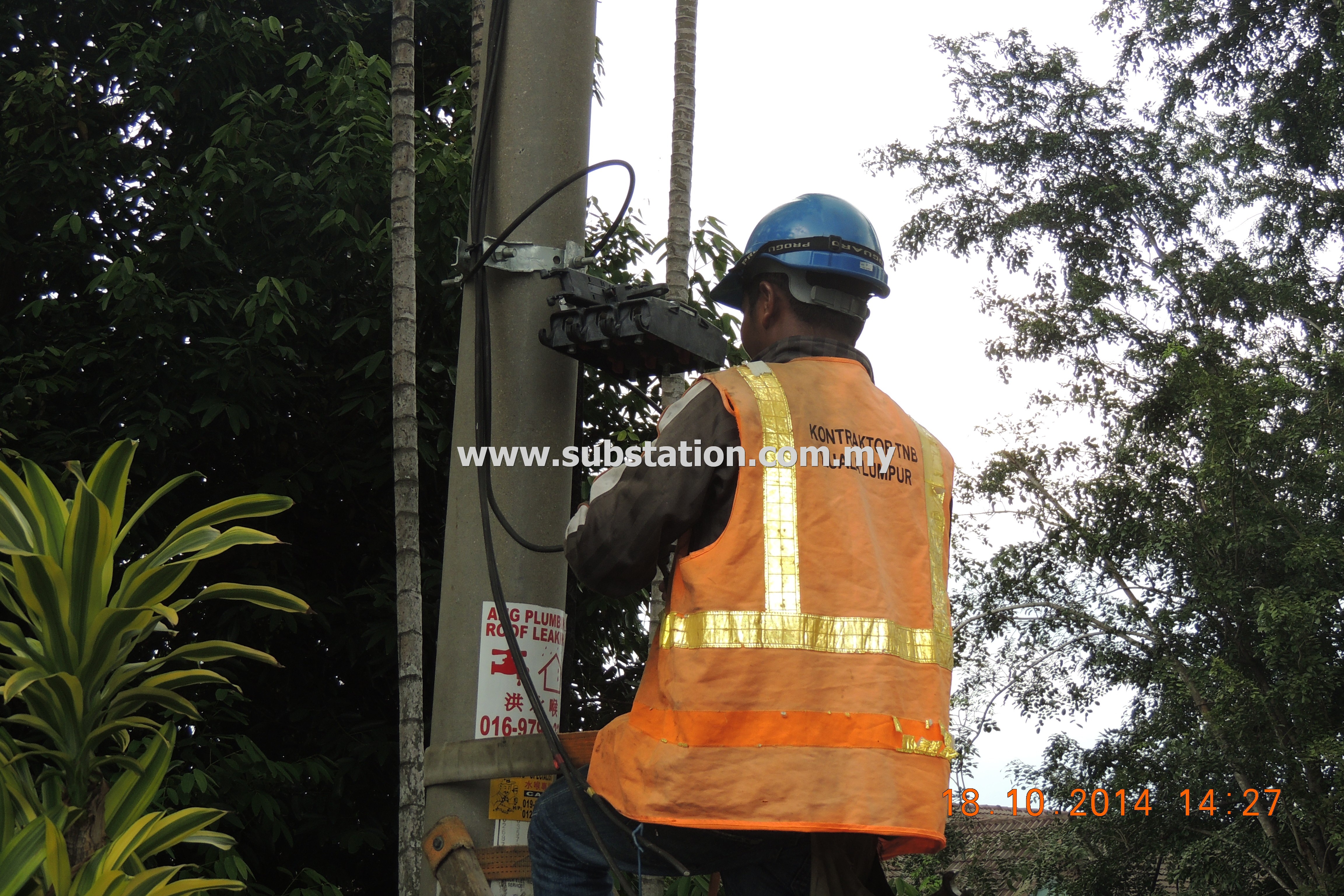

FIXING of INSULATED PIERCING CONNECTORS to FUSE HOLDER

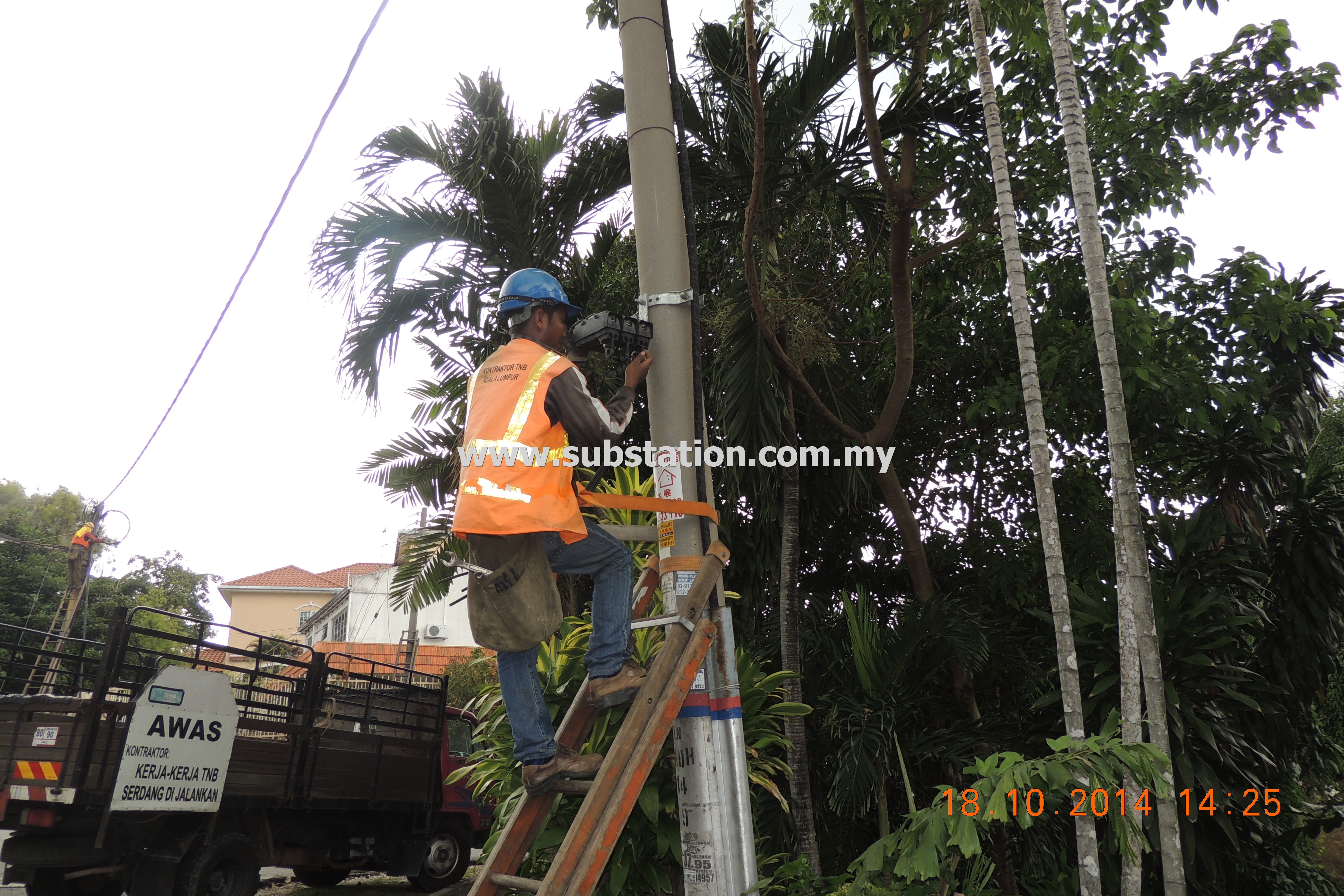

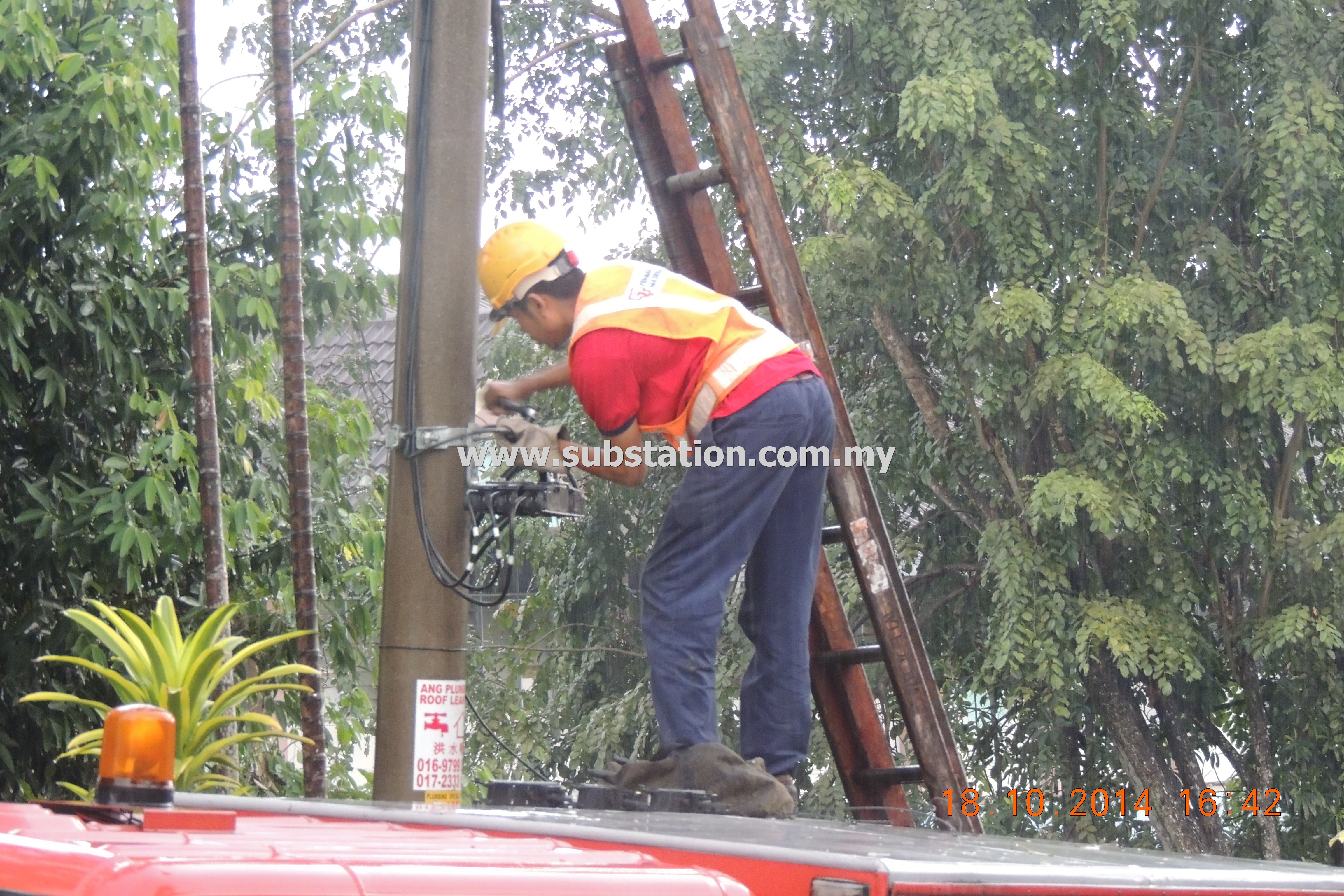

FIXING of 160A BLACK BOX

Fixing of 160A Black Box

PREPARATION of TERMINATION of PILC CABLE to BLACK BOX

Preparation of Termination of PILC Cable to Black Box

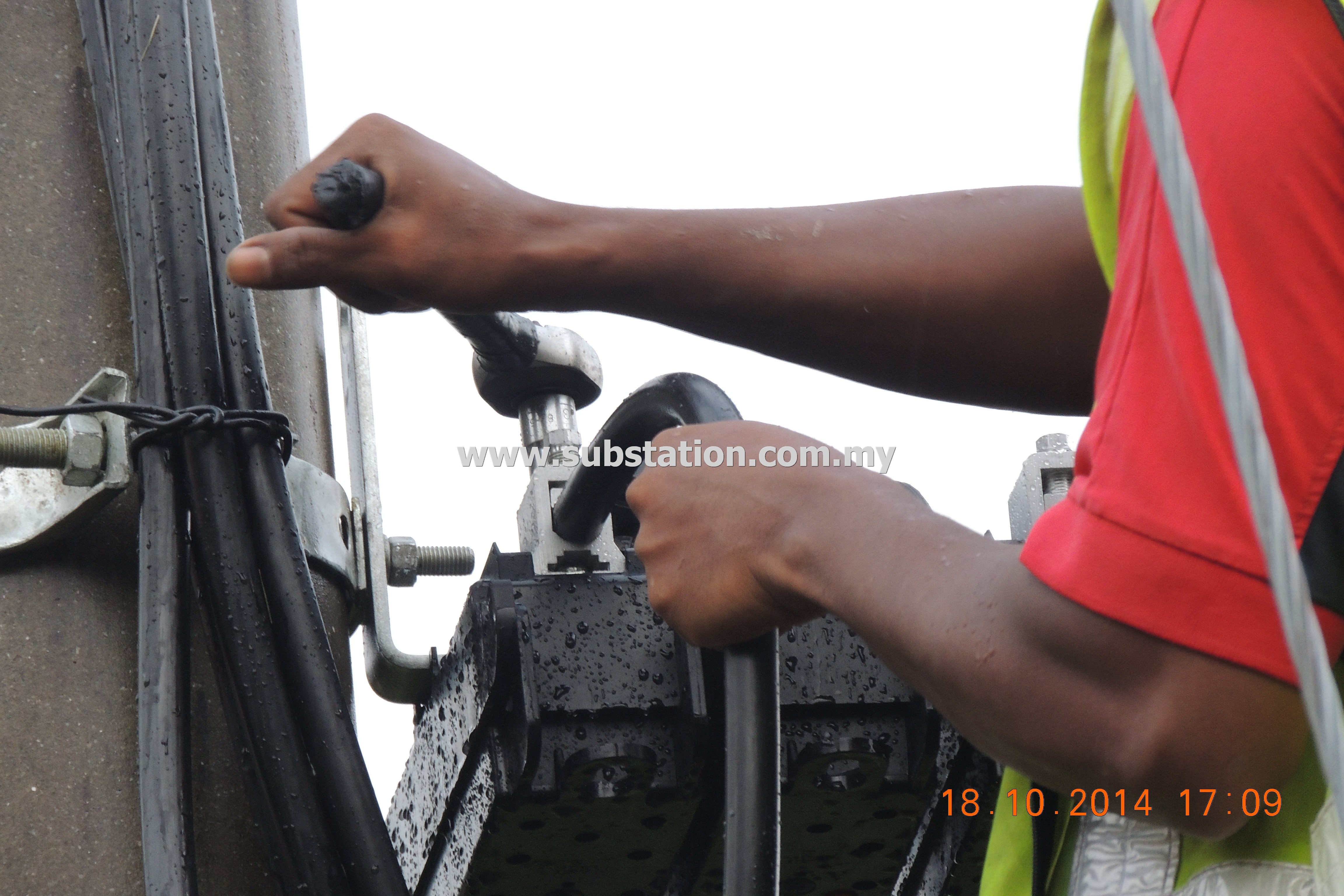

TERMINATION of CABLES into the 160A BLACK BOX

Termination of Cables into the 160A Black Box

TERMINATION at the 160A BLACK BOX

Termination at the 160A Black Box

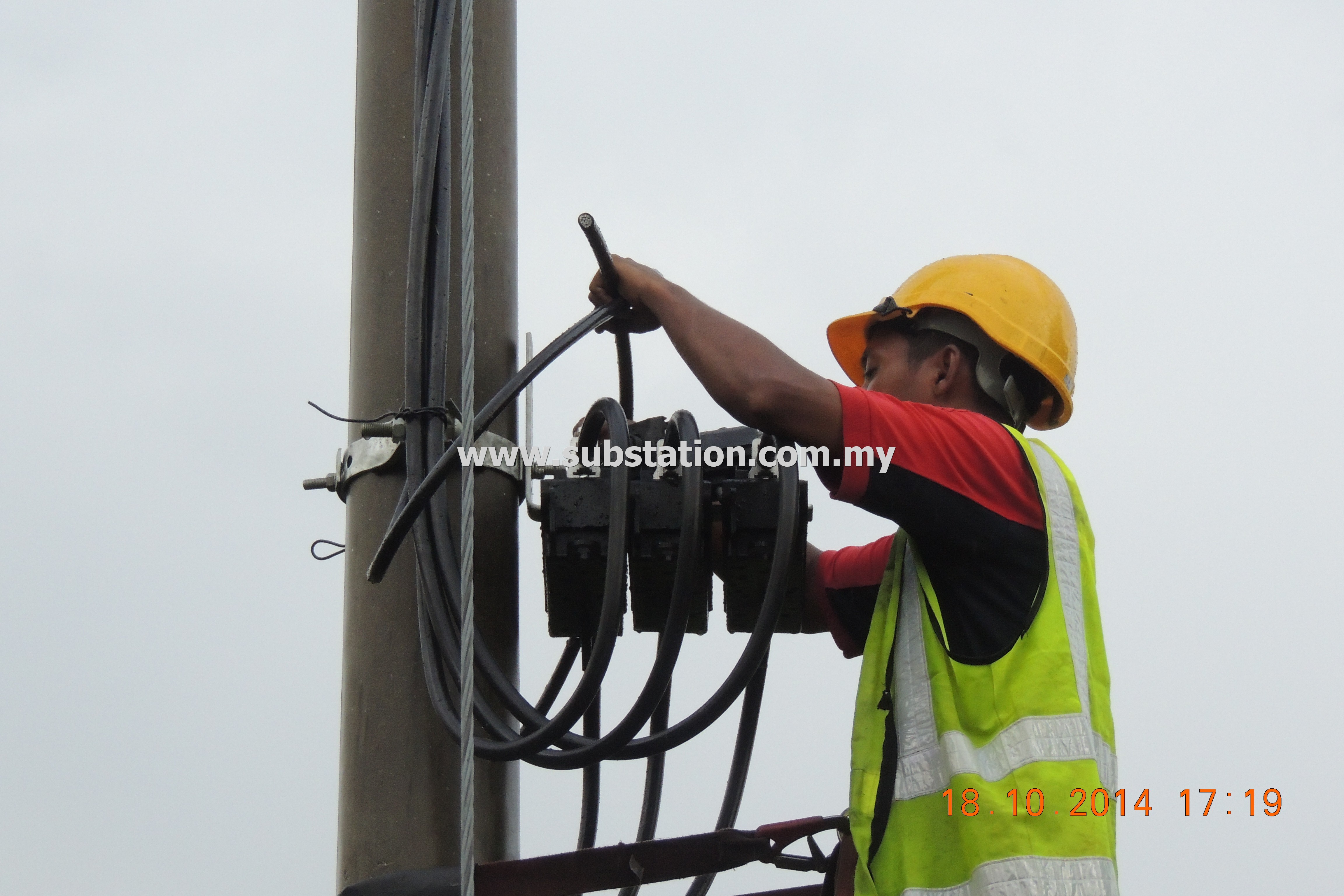

TERMINATION of CABLE into 400A BLACK BOX

Termination of Cable into 400A Black Box

TERMINATION of 400A BLACK BOX COMPLETED on ONE SIDE

Termination of 400A Black Box Completed on One Side

COMPLETED TERMINATION for 400A BLACK BOX

Completed Termination for 400A Black Box
